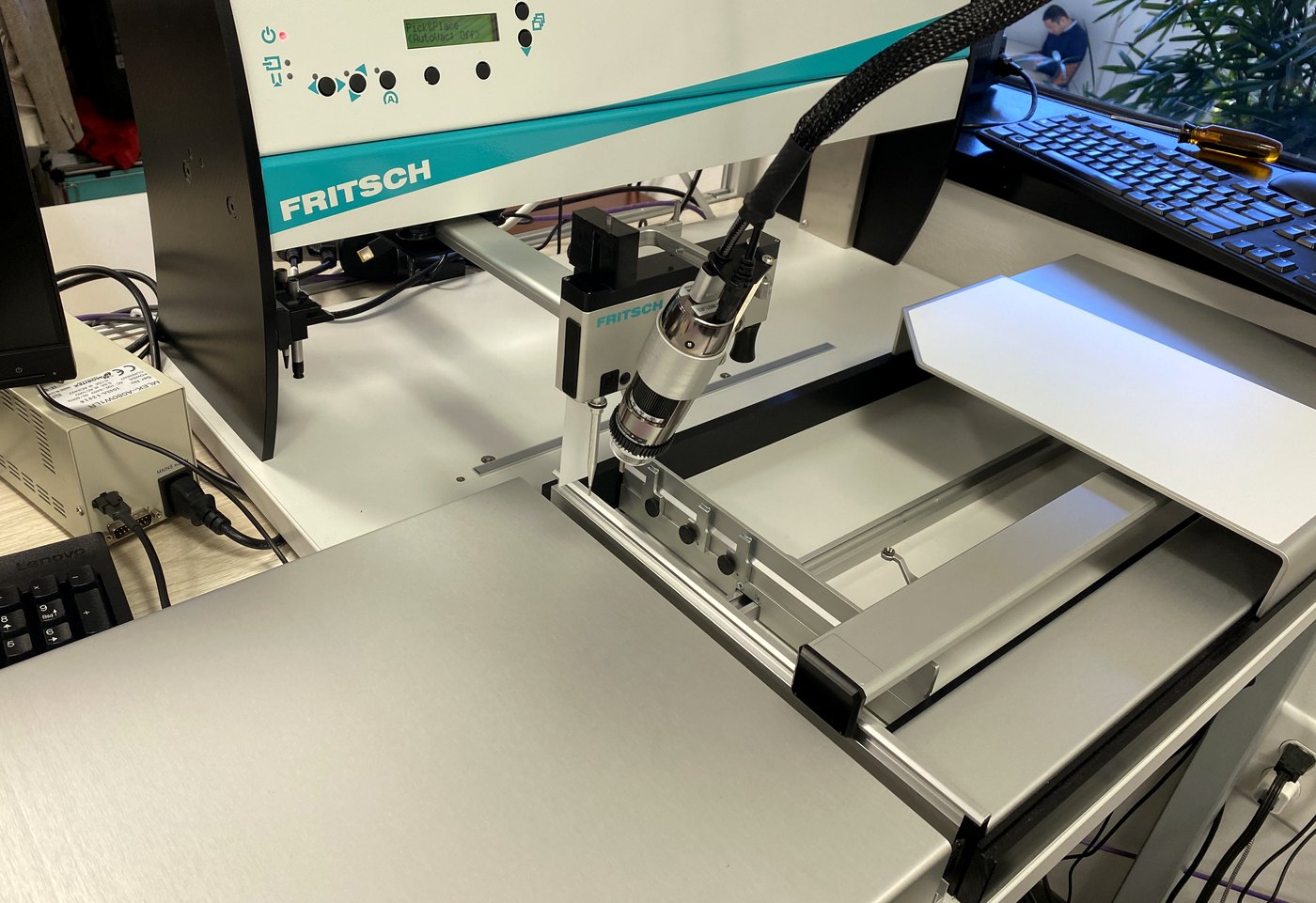

SM902 PRO Semi-Automatic Pick & Place System
PC-directed placement for prototypes and small series, supplied with control unit, nozzle set and accessories.
Overview
A PC-directed semi-automatic placement system for prototypes and small production series. The operator is guided through a job step by step: pick-up and placement positions for the next component are shown on screen, so reading an assembly plan is not required and misplacements are largely eliminated.

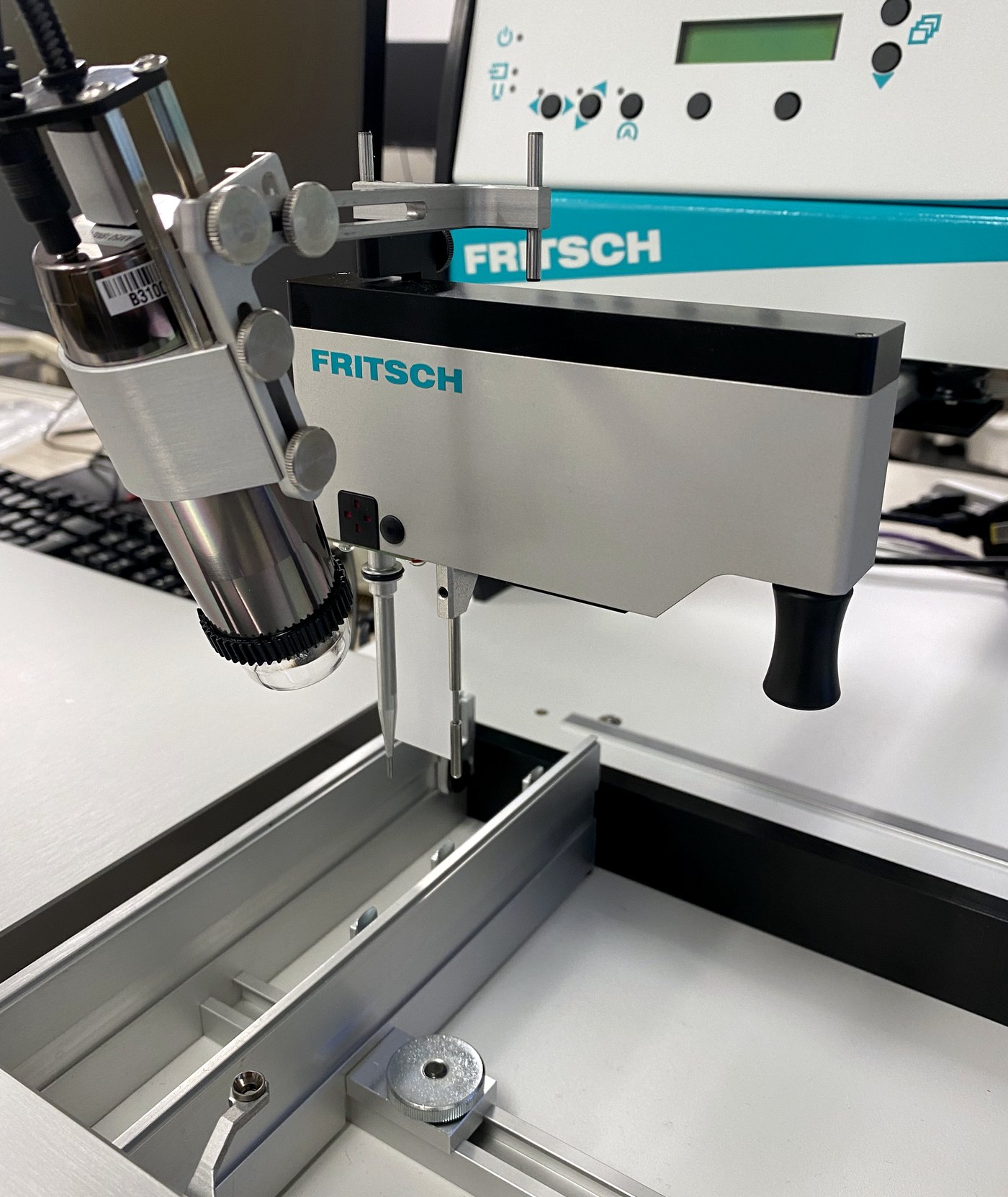

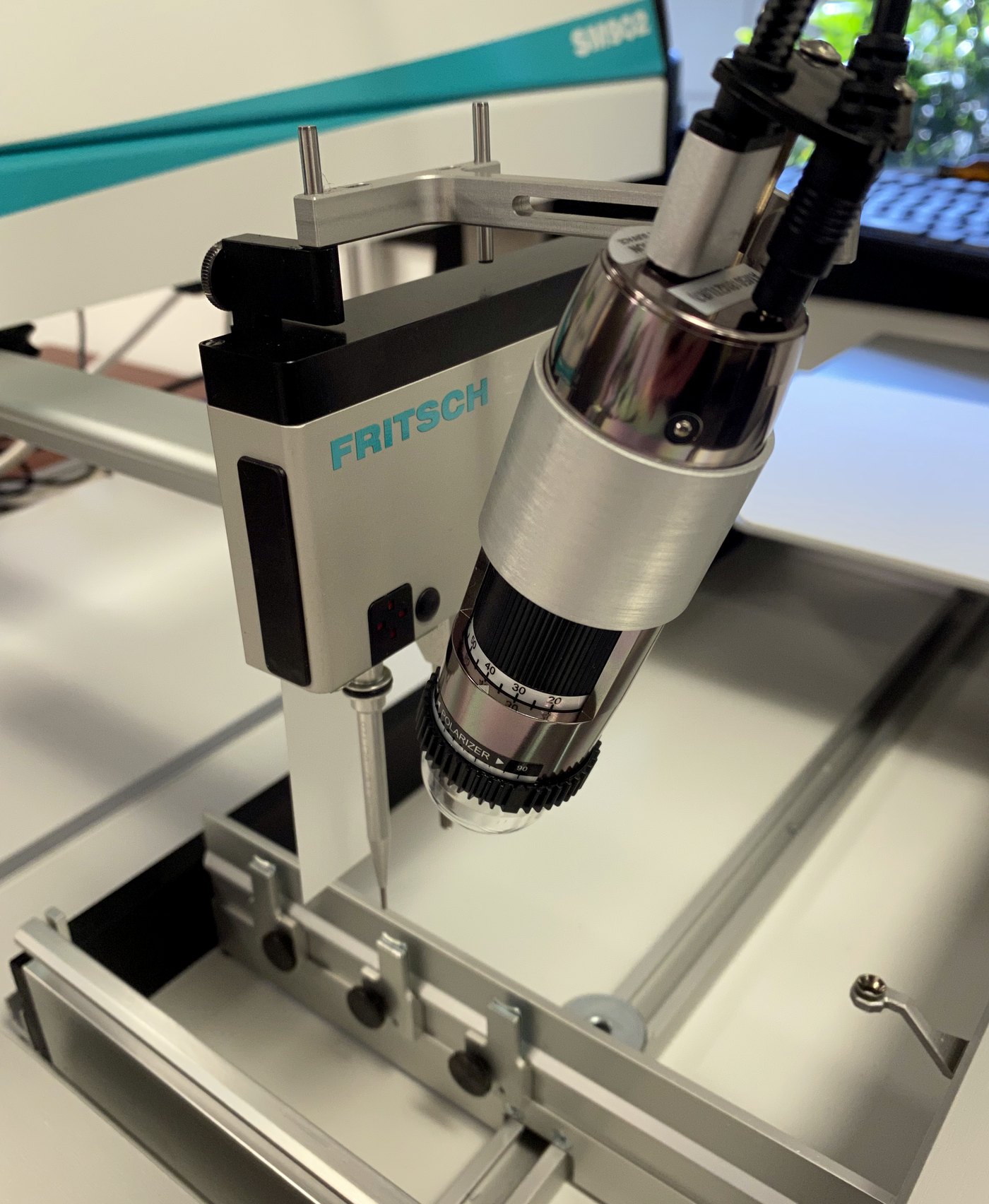

Integrated measurement systems check each position targeted with the placement head, and the current head position is shown on screen throughout. Programs can be created by Teach-In or transferred from CAD data.

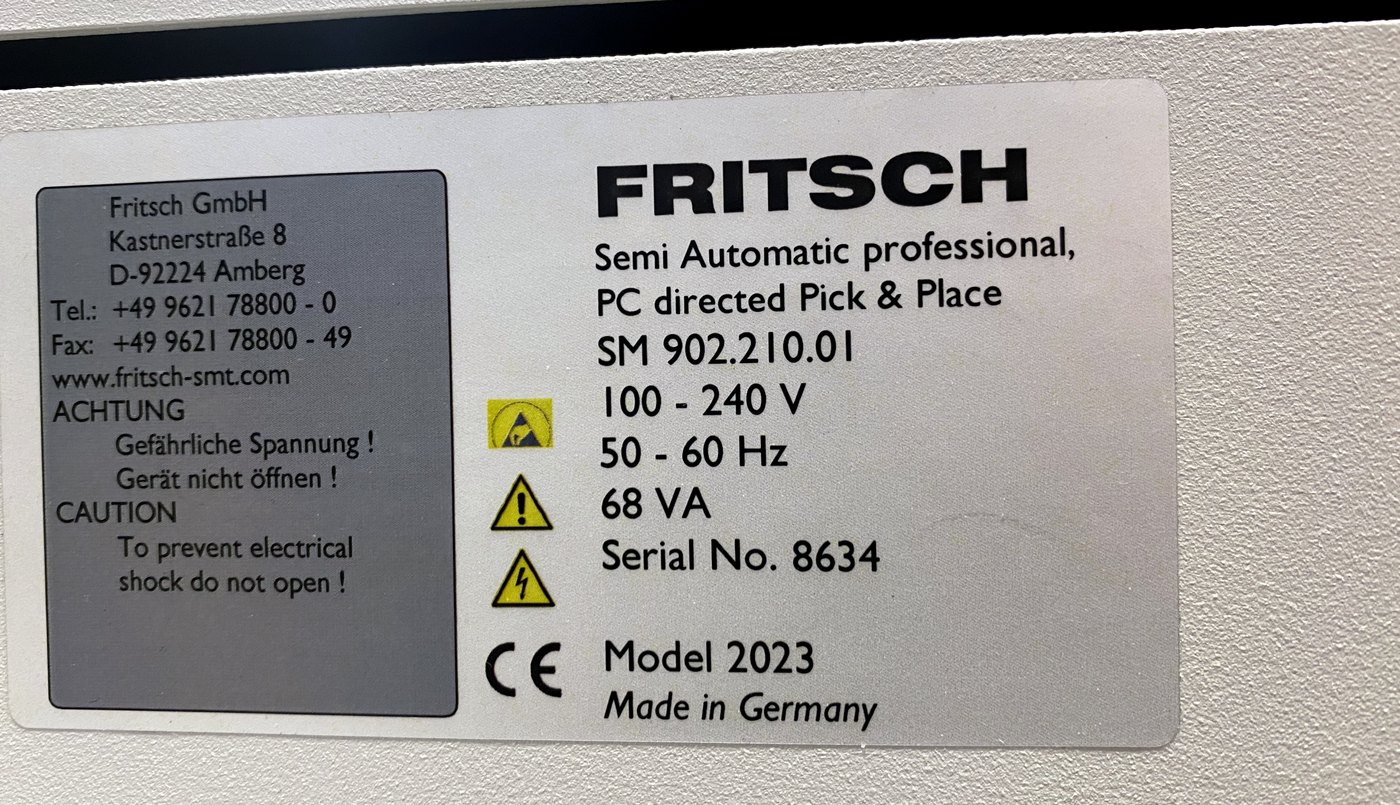

This is the professional variant, identified on the machine plate as Semi Automatic professional, SM 902.210.01, serial number 8634, model year 2023, made in Germany. The unit is supplied with its control PC, nozzles and accessories.
This system was purchased new for an application outside electronic device manufacturing. It was unpacked, set up, and function tested, after which we determined that it was not suited to our intended use. It has never been placed in production.
Key Features
- PC-directed placement — the next pick and place position is shown on screen
- Step-by-step operator guidance removes the need to read an assembly plan
- Integrated measurement system verifies each targeted position
- Teach-In programming or transfer of CAD data
- Supplied with its own control PC and software, ready to operate
Technical Specifications
| Model | SM 902.210.01 — Semi Automatic professional |
|---|---|
| Serial number | 8634 |
| Model year | 2023 |
| Country of manufacture | Germany |
| Electrical supply | 100–240 V, 50–60 Hz |
| Power consumption | 68 VA |
| Condition | New, unused — set up and function tested only |
| Year | 2023 |
| Serial number | 8634 |
| Location | New Jersey, USA |
| Warranty | Sold as-is. No warranty is offered or implied. |
Included With Equipment
- Fritsch SM902 PRO placement system
- Lenovo ThinkCentre M93p Tiny control PC with software installed

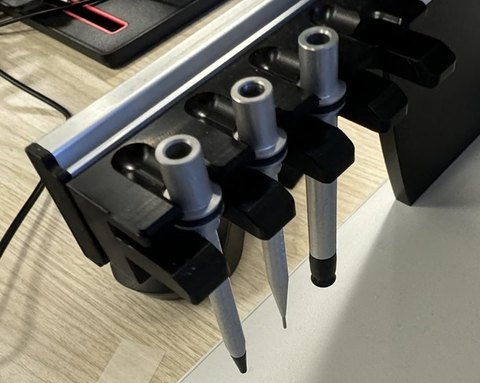

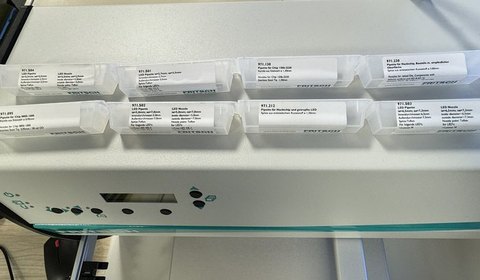

- LED nozzle ⌀1.2 mm, for components up to 3.2 mm
- LED nozzle ⌀1.8 mm, for components up to 5.0 mm
- LED nozzle ⌀2.0 mm, for components up to 6.5 mm
- Assorted placement needles
- Keyboard, mouse and connecting cables
