ANT130-XY Two-Axis Nanopositioning Stage
Two-axis linear-motor stage supplied as a complete system with Automation1 controller, servo drive, cabling and software.
Overview
An integrated two-axis nanopositioning stage supplied as a complete, ready-to-commission motion system. Ironless linear motors and anti-creep crossed-roller bearings give smooth, backlash-free travel of 110 mm on each axis with a minimum incremental motion of 0.5 nm, in an assembly only 85 mm tall.

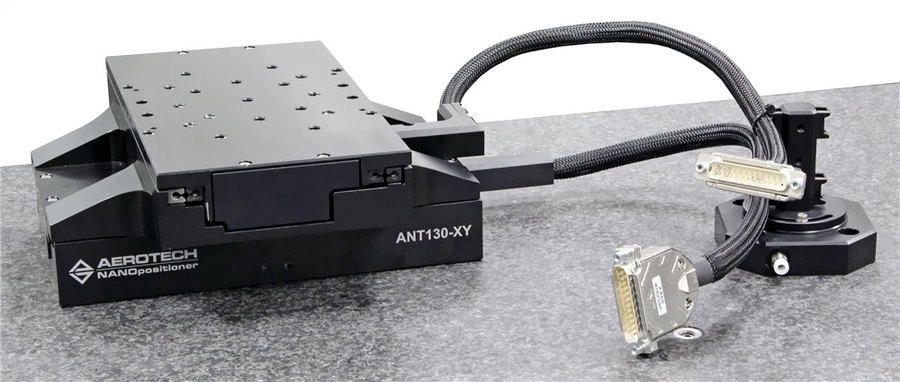

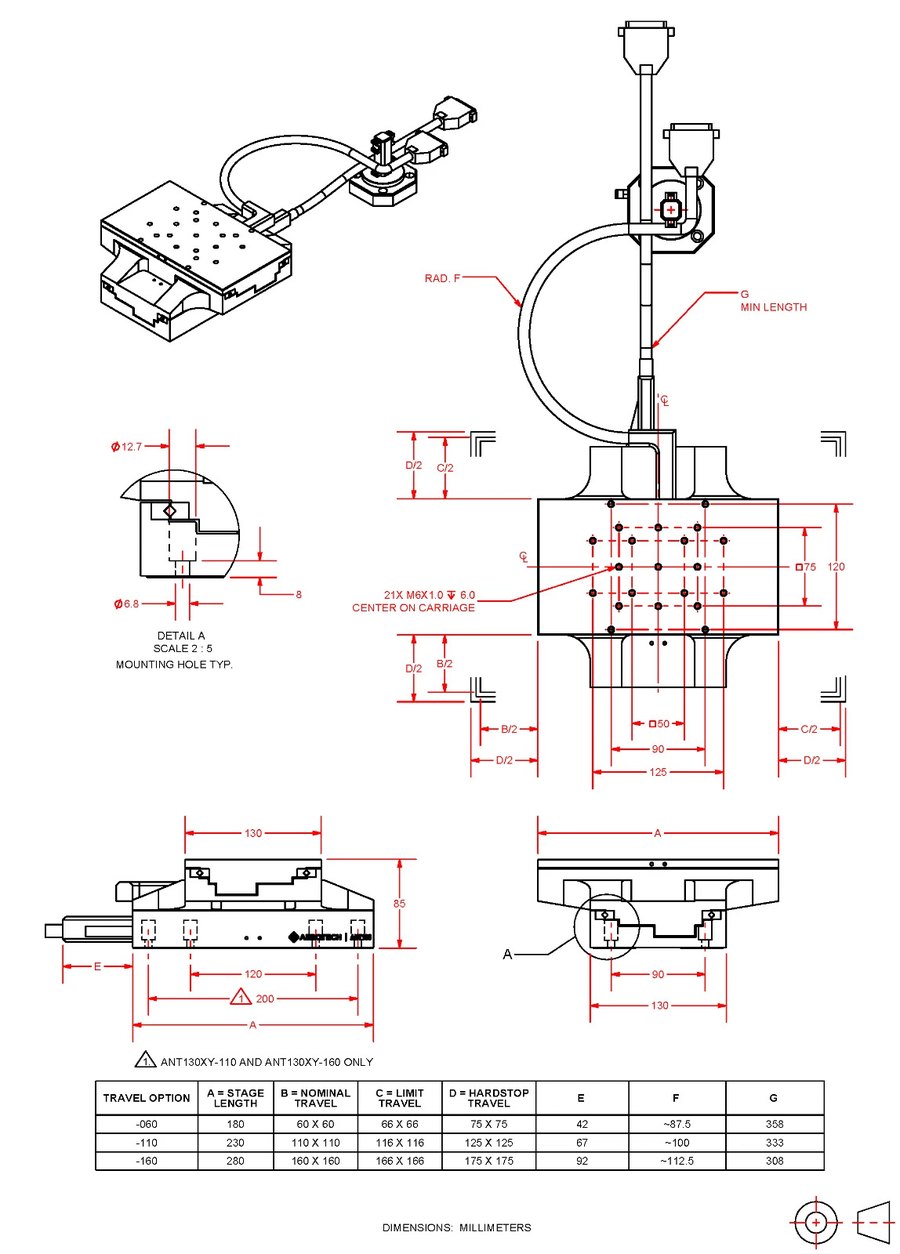

Three complete systems are available. All three are new and unused; two remain in their unopened original wrapping. None was a demonstration unit and none has been placed into service. Because two units are still sealed, the photographs on this page are Aerotech studio images of the model together with the manufacturer's dimensional drawings.
The Automation1 software licence is attached to the system and is sold with it. No involvement from Aerotech is required to transfer it.
Key Features
- Integrated two-axis design optimised for orthogonality, straightness and flatness
- Minimum incremental motion of 0.5 nm
- Ironless linear motors — no cogging, no backlash, no hysteresis
- Anti-creep crossed-roller bearings for high stiffness and load capacity
- PL3 high-accuracy (PLUS) performance grade specified in the configuration code
- Compact 85 mm overall height with universal mounting and tabletop patterns
Technical Specifications
| Configuration code | ANT130XY-110-E1-CN1-CMS2-MP-PL3-TAC |
|---|---|
| Travel | 110 × 110 mm |
| Minimum incremental motion | 0.5 nm |
| Performance grade | PL3 — high accuracy (PLUS) |
| Feedback | E1 — incremental linear encoders, 1 Vpp amplified sine |
| Drive | Ironless linear motor, direct drive |
| Bearings | Anti-creep crossed roller |
| Overall height | 85 mm |
| Connectors | CN1 — single 25-pin D |

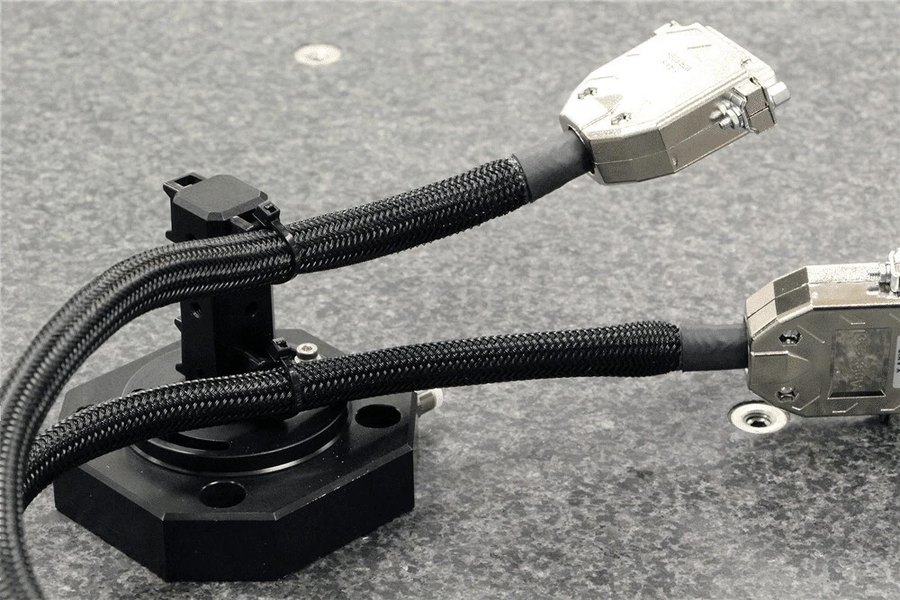

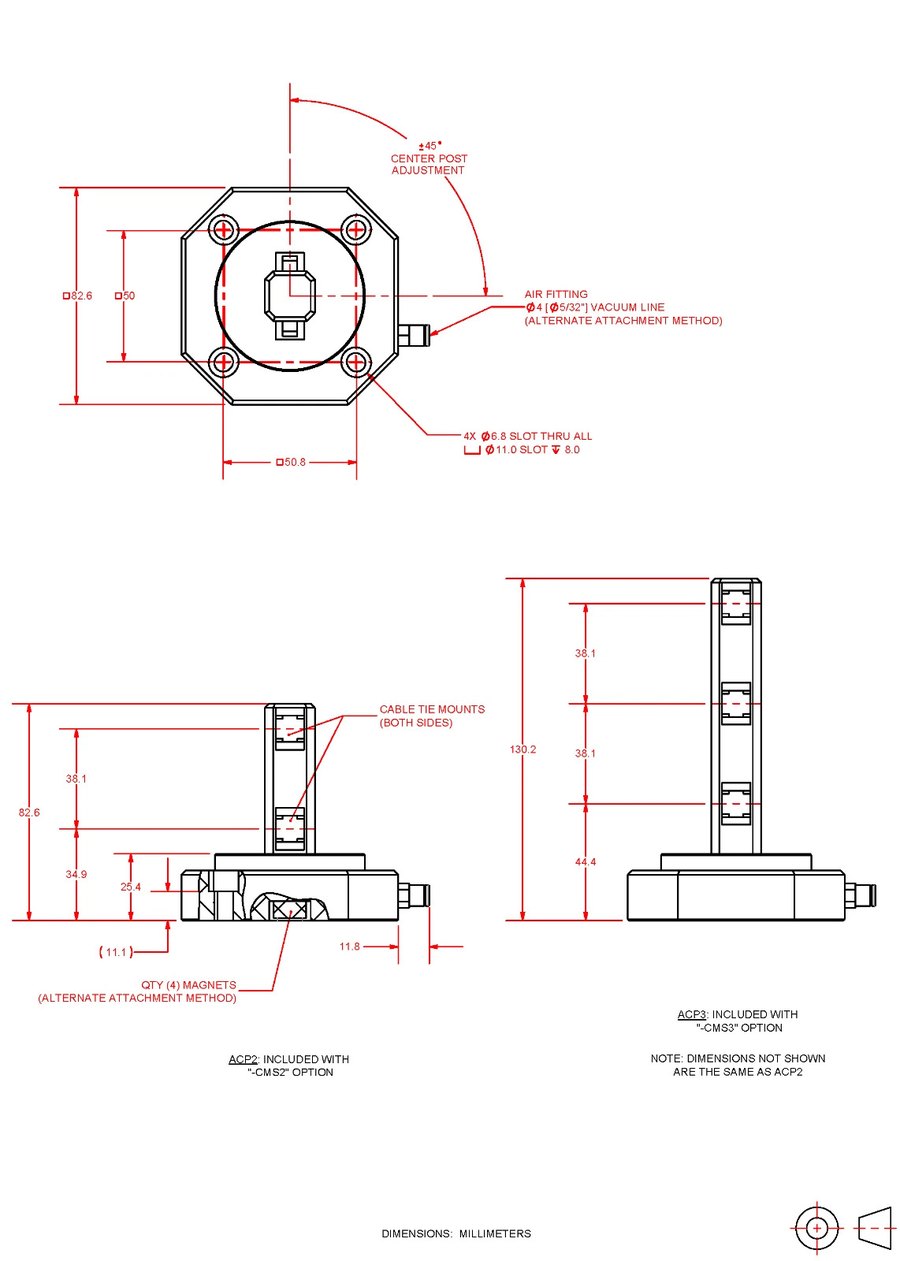

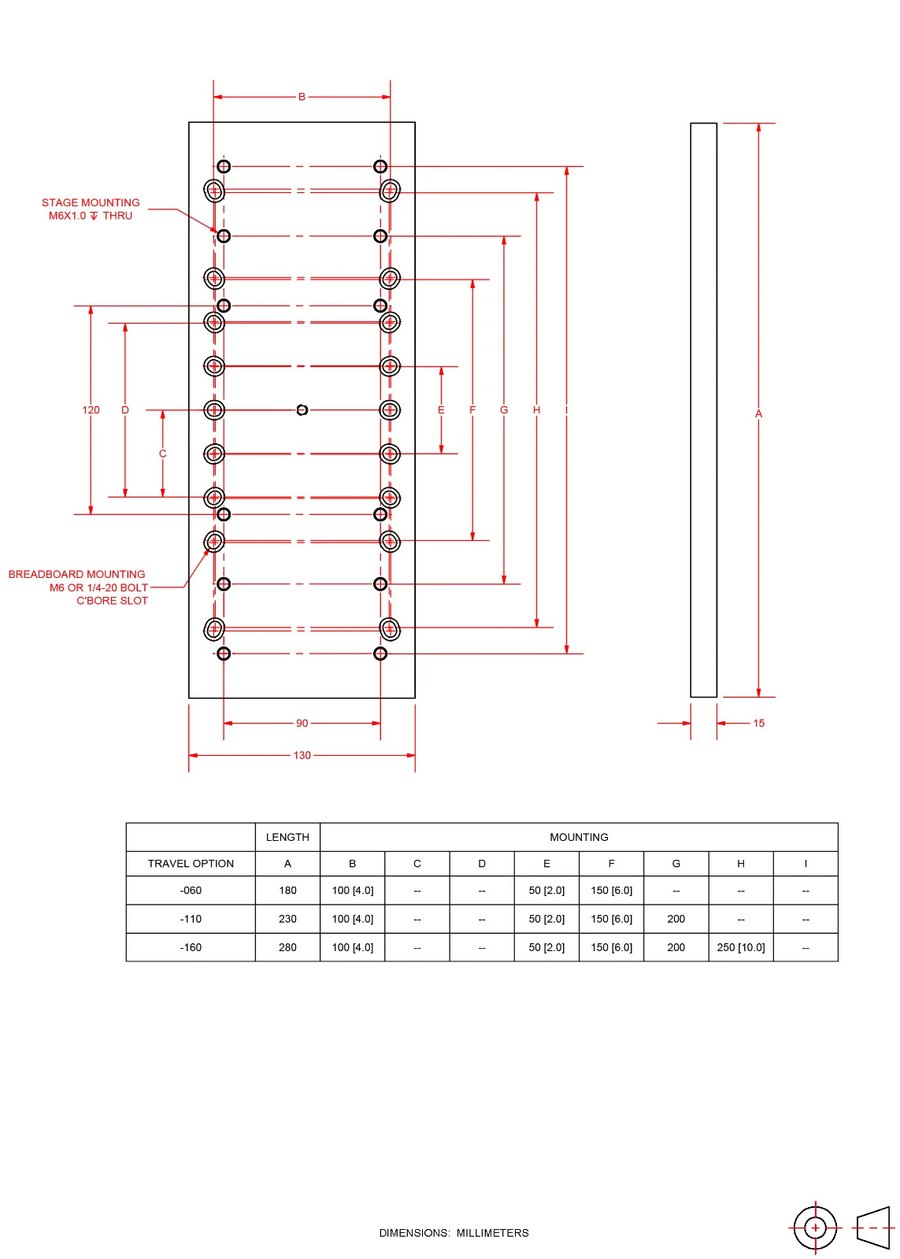

| Cable management | CMS2 — two-axis cable support post |
| Mounting plate | Included (-MP) |
| Condition | New, unused |
| Location | New Jersey, USA |
| Warranty | Sold as-is. No warranty is offered or implied. |
Included With Equipment
- ANT130XY-110 two-axis nanopositioning stage
- Automation1-iSMC intelligent software-based motion controller, with licence
- Automation1-iXC4e enhanced PWM servo drive with motion controller
- Two ANT130XY motor power and feedback cables (C18982-50)
- HyperWire AOC 10 Gb communication cable
- Unshielded CAT5e Ethernet cable, 3 m
- Sync USB A-to-A cable, 1 m
- TV0.3-56 isolation transformer, 56 VAC output for 80 VDC bus
- Automation1 Motion Development Kit software
